* Application

Belt Conveyor as Truck loader is for loading truck with minimum labor. It can be utilized to load Finished briquettes / Biocoal in loose or Bag. It is very useful for material handling and transportation of finished product.

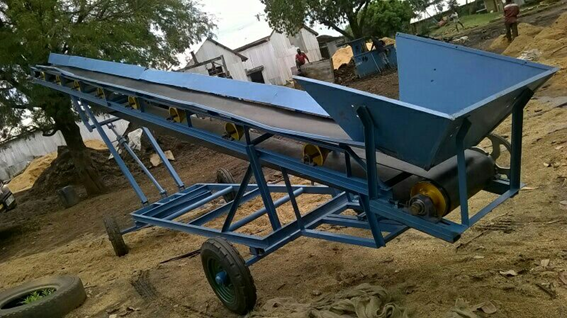

* System Description of Belt Conveyor - Truck loader Mobile

The Belt conveyor is fitted on frame structure with supported rollers. It is operated threw electric motor . Feeding hoper on below end and adjustable height to set other end of Belt conveyor. Four wheels is very useful to move one place to another near loading truck.

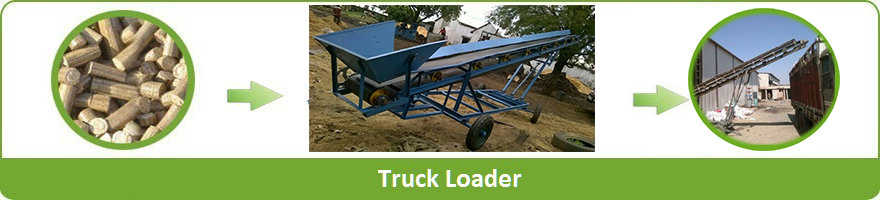

* Truck Loader



* System Specification

Type of Loader :  Belt conveyor (mobile )
Height Adjustment :  By Jack Nutts
Moving Scope :  By wheels
Loading Capacity* :  5-10 MT/ Hr of Briquettes
Single time load capacity :  200 Kg
Conveying Height :  12 Feet ( Full Body truck height )
Electric Motor :  2 HP

* Silent Futures of Radhe Engineering Co. - Belt Conveyor - Truck loader Mobile

  • Standard Heavy duty applicable MOC and aliment.
  • Height adjustment for small truck and full body truck
  • 2 feet width for loading bags also.
  • Mobility due to wheels
  • Forward / Reverse switch option to operate
  • Minimum electric load 2 HP only.
  • For special purpose heavy duty model is available
